Product details
UPS2000-G is for small- and medium-sized enterprises, branches of large enterprises, AC power supplies for control systems and precision instruments, etc.
UPS models
|
Model |
Represented By |
Remarks |
|---|---|---|
|
UPS2000-G-1KRTS |
1K-standard backup time model-rack mounted-IEC |
The standard and long backup time models are abbreviated to 1 kVA when their common features or parameters need to be described. |
|

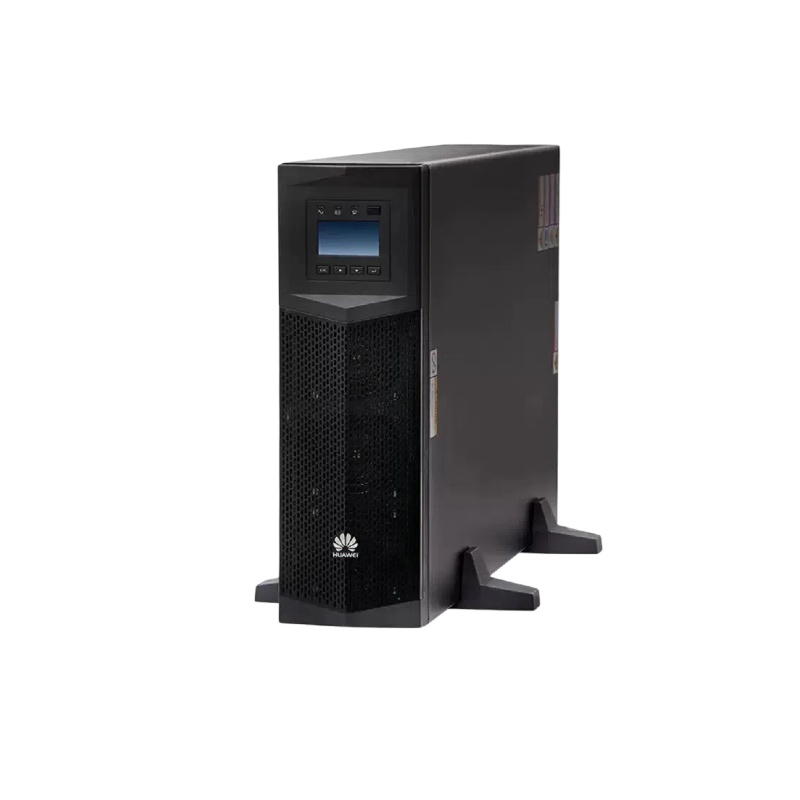

UPS2000-G-1KRTL |
1K-long backup time model-rack mounted-IEC |
|
|
UPS2000-G-2KRTS |
2K-standard backup time model-rack mounted-IEC |
The standard and long backup time models are abbreviated to 2 kVA when their common features or parameters need to be described. |
|
UPS2000-G-2KRTL |
2K-long backup time model-rack mounted-IEC |
|
|
UPS2000-G-3KRTS |
3K-standard backup time model-rack mounted-IEC |
The standard and long backup time models are abbreviated to 3 kVA when their common features or parameters need to be described. |
|
UPS2000-G-3KRTL |
3K-long backup time model-rack mounted-IEC |
UPS model number details
|
No. |
Meaning |
Description |
|---|---|---|
|
1 |
Product category |
UPS: uninterruptible power system |
|
2 |
Product family |
2000: P (capacity) ≤ 20 kVA |
|
3 |
Product series |
|
|
4 |
Output capacity Unit: VA |
|
|
5 |
UPS type |
|
|
6 |
Built-in battery pack (optional) |
|
Optional Components
|
Optional Component |
Model |
Function |
Remarks |
|---|---|---|---|
|
Ambient temperature and humidity sensor |
– |
Measures the ambient temperature (0–50°C) and humidity (0%–100% RH). |
Used together with an SNMP card. |
|
Battery pack |
ESS-36V12-9*2AHBPVBB01 |
Contains two battery strings. Each string contains three 9 Ah/12 V DC batteries. The output voltage of the battery pack is 36 V DC. |
Applicable to the 1 kVA UPS with long backup time. |
|
ESS-72V12-9AHBPVBB01 |
Contains one battery string with six 9 Ah/12 V DC batteries. The output voltage of the battery pack is 72 V DC. |
Applicable to the 2 kVA UPS with long backup time. |
|
|
ESS-96V12-9AHBPVBB02 |
Contains one battery string with eight 9 Ah/12 V DC batteries. The output voltage of the battery pack is 96 V DC. |
Applicable to the 3 kVA UPS with long backup time. |
|
|
SNMP card |
RMS-SNMP01B |
Monitors the UPS, provides the Ethernet networking solution, and enables ambient temperature and humidity detection. |
– |
|
Modbus card |
RMS-MODBUS01B |
Provides two cascaded RS485 ports to implement networking over the Modbus or YDN-23 protocol. |
– |
|
Dry contact card |
RMS-RELAY01B |
Provides dry contact signals and manages the UPS remotely. |
– |
|
External dry contact card |
RMS-RELAY02B |
Provides dry contact signals and manages the UPS remotely. |
Used together with an SNMP card. |
|
External charger |
CHG-36V15A-01B |
Connects the battery pack or rack to the mains and charges the batteries or battery pack. |
Applicable to the 1 kVA UPS with long backup time. |
|
CHG-72V12A-01B |
Applicable to the 2 kVA UPS with long backup time. |
||
|
CHG-96V10A-01B |
Applicable to the 3 kVA UPS with long backup time. |
||
|
High-voltage protector |
OVCD-230V16A-01B |
The OVCD is connected between the mains and the UPS input. If the mains voltage is abnormally high, the OVCD actively disconnects the L wire between the mains input and UPS to prevent the abnormally high voltage from flowing into the UPS and damaging the UPS. In addition, the OVCD provides extra input surge voltage absorbing capability and input filtering capability. |
– |
|
Guide rail component |
None |
Secures the UPS or battery pack. |
Configured in rack-mounted scenarios. |
