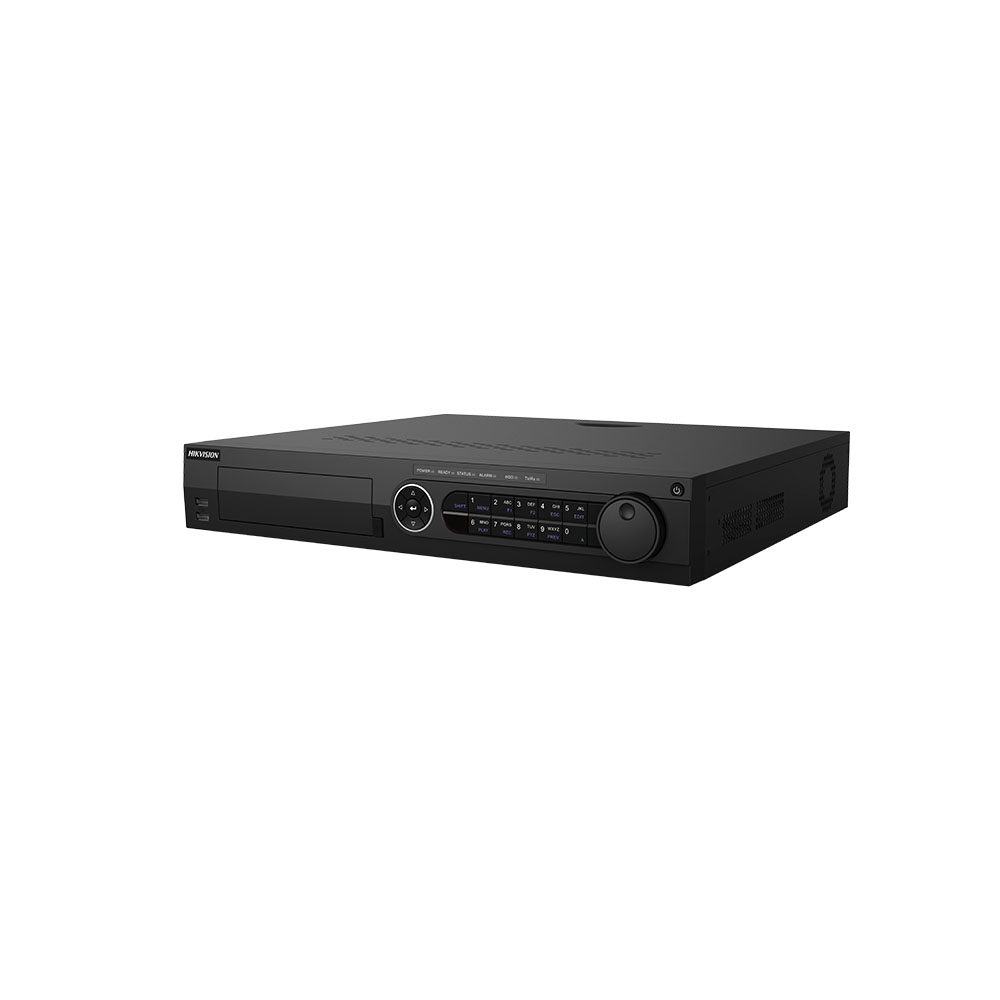

iDS-7332HUHI-M4/S Overview
32-ch 5MP 1.5U H.265 AcuSense DVR
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- Up to 32-ch analog camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 64-ch network camera inputs
- POS triggered recording and POS information overlay
Available models:
| iDS-7332HUHI-M4/S(S) Specification | ||
|---|---|---|
| Intelligent Analysis | Motion Detection 2.0 | – Deep learning-based, enabled by default for all analog channels
– Supports Human/Vehicle Analysis – Significantly reduces false alarms caused by objects like leaves and lights – Supports quick search by object or event type |
| Perimeter Protection | – Supports Human/Vehicle Analysis
– Up to 16 channels, applicable to channels 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only |
|
| Video & Audio Input | IP Video Input | – 32 channels (up to 64 channels expandable)
– Up to 12 MP resolution – Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | – 32 channels
– BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
| HDTVI Input | Supported resolutions: 8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| AHD Input | Supported resolutions: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI Input | Supported resolutions: 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS Input | PAL/NTSC 制式 supported | |
| Audio Input | – 4 channels, RCA interface (2.0 Vp-p, 1 KΩ) | |
| Two-Way Audio | – 1 channel, RCA interface (2.0 Vp-p, 1 KΩ) (independent) | |
| Video & Audio Output | CVBS Output | – 1 channel, BNC interface (1.0 Vp-p, 75 Ω)
– Resolution: PAL (704 × 576), NTSC (704 × 480) |
| HDMI 1 Output | – 1 channel
– Supported resolutions: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| HDMI 2 Output | – 1 channel
– Supported resolutions: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| VGA Output | – 1 channel
– Supported resolutions: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2 independent output | |
| Audio Output | – 1 channel, RCA interface (Linear, 1 KΩ) | |
| Bandwidth & Playback | Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 256 Mbps | |
| Synchronous Playback | 16 channels | |
| Recording Parameters | Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame Rate | – Main stream: 8 MP@8 fps, 3K@12 fps, 5 MP@12 fps, 4 MP@15 fps, 3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
– Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|
| Video Bitrate | 32 Kbps to 10 Mbps | |
| Dual-stream | Support | |
| Stream Type | Video, Video & Audio | |
| Audio Compression | G.711u | |
| Audio Bitrate | 64 Kbps | |
| Network Parameters | Remote Connection | 128 connections |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP | |
| Network Interface | 2 × RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| Auxiliary Interface | SATA | 4 SATA interfaces |
| eSATA | Support | |
| Capacity | Up to 12 TB capacity for each disk | |
| Serial Interface | RS-232, RS-485 (full-duplex), Keyboard interface | |
| Alarm In/Out | 16 inputs / 4 outputs | |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 | |
| General Specifications | Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 55 W (without HDD) | |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working Humidity | 10% to 90% (non-condensing) | |
| Dimension (W × D × H) | 440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch) | |
| Weight | ≤ 7 kg (without HDD, 15.4 lb.) | |
