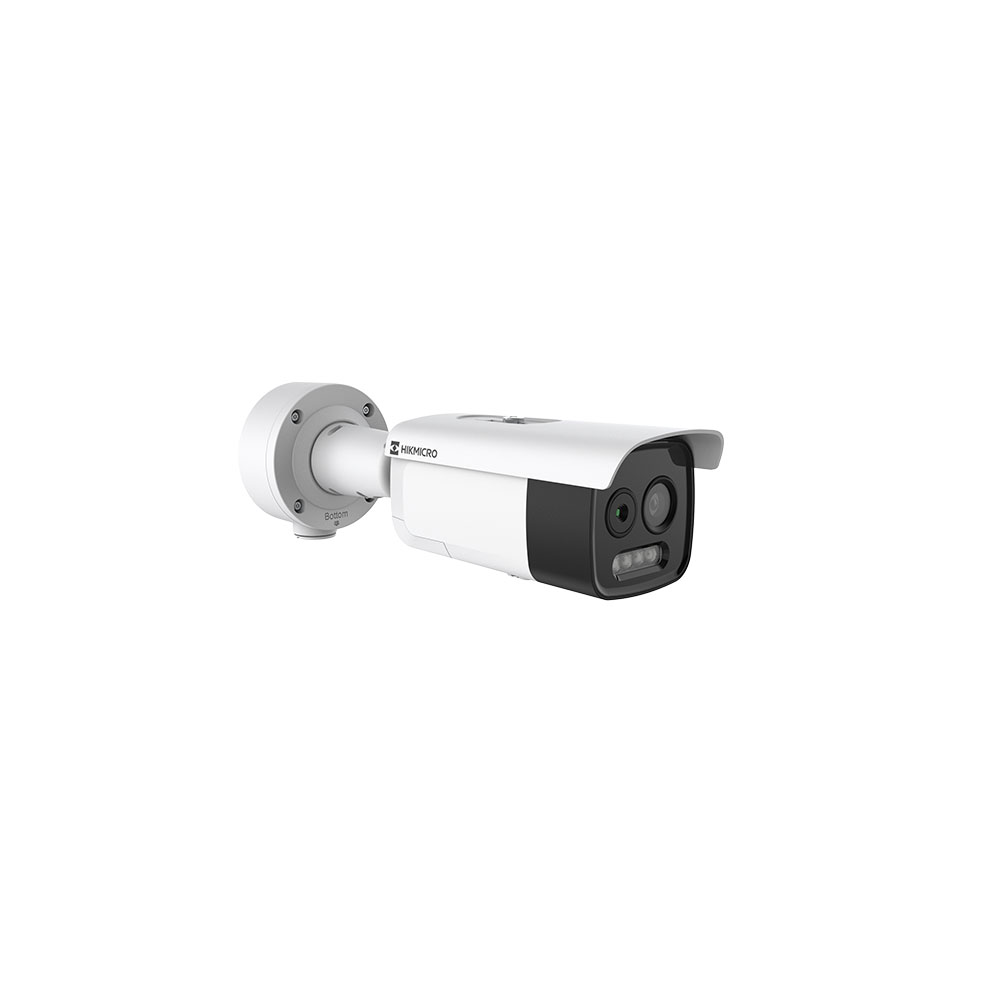

HM-TD2618-10/G0/T1A Overview
Thermal & Optical Bi-spectrum Network Bullet Camera
- 160 × 120 resolution, 12 μm, VOx UFPA, NETD ≤25 mK (25°C, F1.0)
- Video content analysis 3.0 (VCA3.0): high accuracy vehicle/human detection and classification
- Support smart hybrid light: white light, IR and smart mode
- Temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F), ± 8°C (± 14.4°F)
- Support fire point detection algorithm
- Support smoking detection algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
Available models:
HM-TD2618-10/G0/T1A
| HM-TD2618-10/G0/T1A Specification | |
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 160 × 120 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤25 mK (25°C, F1.0) |
| Focal Length | 9.7 mm |
| IFOV | 1.24 mrad |
| Field of View | 18.0° × 13.5° (H × V) |
| Min. Focusing Distance | 1.5 m |
| Aperture | F1.0 |
| Digital Zoom | ×2, ×4 |
| Optical Module | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Resolution | 5MP, 2688 × 1944 |
| Min. Illumination | 0.0089Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Focal Length | 12.4 mm |
| Field of View | 24.6° × 14° (H × V) |
| Aperture (Range) | F1.6 |
| WDR | 120 dB |
| Bi-spectrum Image Fusion (Image Effect) | Displays the details of optical channel on thermal channel |
| Picture in Picture (Image Effect) | Displays partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Yes; supported in white hot and black hot mode |
| Illuminator & Audible/Visual Alarm | |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| IR Distance | Up to 80 m |
| White Light Range | Up to 80 m |
| Visual Alarm | Yes; white light alarm with adjustable flashing frequencies |
| Audio Alarm | Yes, for two types (VCA and Temperature Exception) – 2 preset voice alerts (one for each type) – 6 importable user-defined voice alerts (6 options shared by the two types) |
| Smart Function | |
| VCA | 4 rule types (line crossing, intrusion, region entrance, region exiting); up to 8 rules in total |
| Temperature Measurement | 3 rule types (point, area, line); 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ±8°C (±14.4°F) |
| Fire Detection | Dynamic fire detection; up to 10 fire points detectable |
| Video and Audio | |
| Main Stream – Thermal | 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) |
| Main Stream – Optical | 50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream – Thermal | 25 fps (704 × 576, 640 × 512, 320 × 240) |
| Sub-stream – Optical | 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Video and Image | |
| Color Palettes | 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage; NAS (NFS, SMB/CIFS); Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host Level | Up to 32 users; 3 levels (Administrator, Operator, User) |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client & Web Browser | |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed): Internet Explorer 11 Live view (plug-in free): Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Interface | |
| Alarm Input | 2 channels; alarm input (0-5 VDC) |
| Alarm Output | 2 channels; alarm output (configurable alarm response actions) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1 channel; 3.5 mm Mic in/Line in interface Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output | Linear level; impedance: 600 Ω |
| Communication Interface | 1 × RJ45 10 M/100 M Self-adaptive Ethernet interface 1 × RS-485 interface (half duplex) |
| General | |
| Web Client Language | 32 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)) |
| Power Supply | 12 VDC ± 25%, two-core terminal block PoE (802.3at, class 4) |
| Power Consumption | 12 VDC ± 25%: 1.67A to 2.5 A, max. 24W PoE (802.3at, class 4): 42.5 V to 57 V, 0.42 A to 0.56 A, max. 24W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Protection Level | IP67 Standard, IK10 TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions & Weight | Dimensions: 349.1 mm × 113 mm × 105 mm Weight: 1710 g |
| Detection Range | |
| VCA Range for Humans | 100 m |
| VCA Range for Vehicles | 300 m |
| Approval | |
| EMC | CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32:2015); IC (ICES-003: Issue 7); KC (KSC9832:2019; KSC9835:2019) |
| Safety | CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252 (Part 1):2010/ IEC 60950-1:2005; LOA: SANS/IEC 60950-1 |
| Environment | CE-RoHS：2011/65/EU; WEEE: 2012/19/EU; Reach：Regulation(EC) No 1907/2006 |
| Protection Standard | IP67: IEC 60529-2013 IK10: IEC 62262-2002 |
