Product details

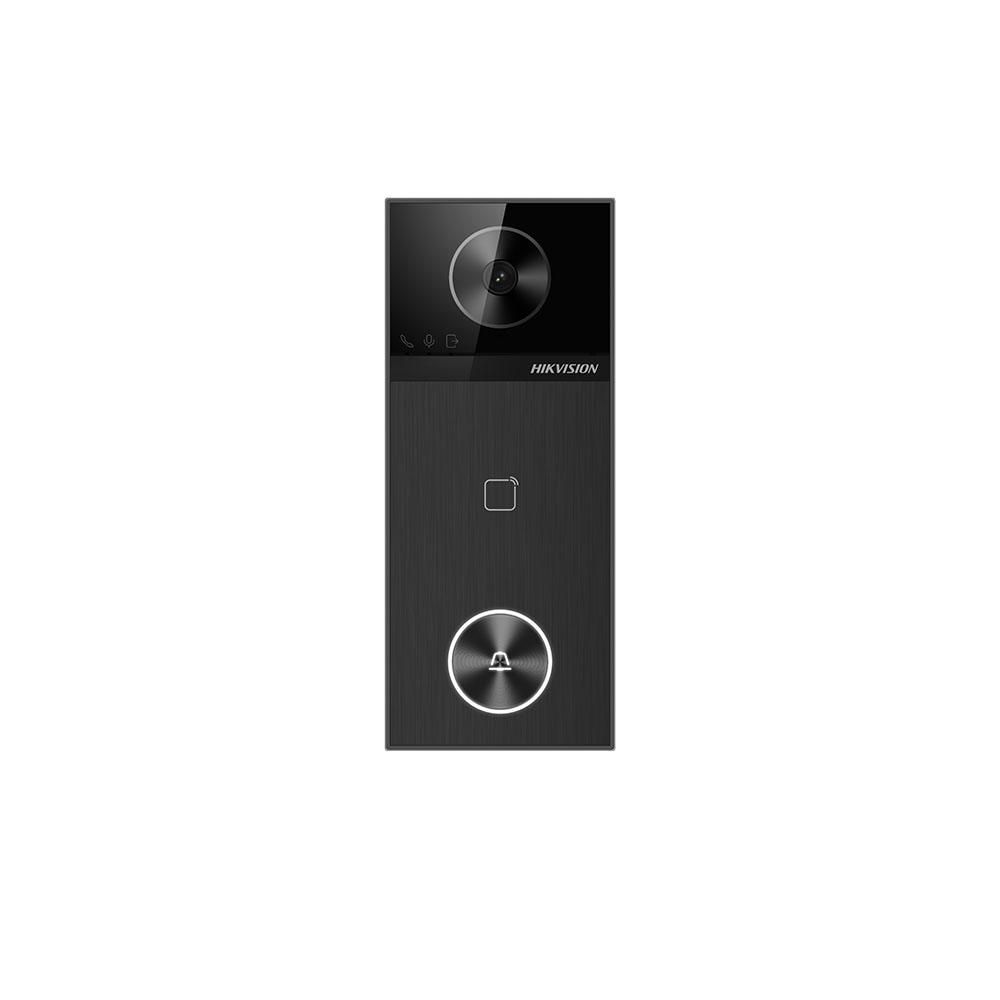

DS-KV6114-E1 Overview
Villa door station
- 4MP higher resolution with 150° viewing angle
- 2 locks control
- Multiple unlocking methods: Card, Hik-Connect, indoor station
- Video recording and playback via Hik-Connect or PC web
- Standard IEEE802.3at PoE power supply
Available models:
DS-KV6114-E1
| DS-KV6114-E1 Specification | ||
|---|---|---|
| Operating System | Operating System | Linux |
| Storage & Memory | ROM | 4 GB |
| RAM | 512 MB | |
| Storage Expansion (TF Card) | Supports TF card, up to 128 GB; Supported formats: FAT32, exFAT | |
| Processor | Processor Type | Embedded high-performance processor |
| Video Parameters | Lens Quantity | 1 |
| Resolution – Main Stream | 4MP (2688x1520P), 2MP (1920x1080P), 1MP (1280x720P) | |
| Resolution – Sub Stream | 2MP (1920x1080P), 1MP (1280x720P), 0.3MP (640x480P) | |
| FOV (Field of View) | Horizontal: 150°; Vertical: 75° | |
| Wide Dynamic Range (WDR) | Supports 120 dB | |
| Supplemental Light | IR light, up to 3 m effective distance | |
| Video Compression Standard | H.264; H.265; MJPEG | |
| Audio Parameters | Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729 | |
| Audio Output | 1 built-in loudspeaker | |
| Audio Compression Bitrate | 8~64 Kps | |
| Audio Quality Enhancement | Noise suppression and echo cancellation | |
| Volume Control | Adjustable | |
| Audio Performance | 80 dB at 50cm (Maximum: 83 dB at 50cm) | |
| Audio Sample Rate | 16kHz, 8kHz | |
| Capacity | User Capacity | 2000 users |
| Face Capacity | / (Not specified) | |
| Card Capacity | 10000 cards | |
| Network Parameters | Network Protocols | TCP/IP, RTSP, IPv6, ONVIF |
| Wi-Fi | / (Not supported) | |
| Bluetooth | / (Not supported) | |
| 3G/4G | / (Not supported) | |
| Network Interface | 1 RJ-45, 10/100 Mbps adaptive | |
| Authentication | Authentication Modes | Card, Hik-Connect, Indoor Station |
| Card Type | M1 Card | |
| Card Reading Distance | M1 Card: 2 to 2.5 cm | |
| Card Reading Frequency | 13.56 MHz | |
| Application Features | Mobile APP Support | Hik-Connect |
| Motion Detection | Supports | |
| Playback Function | Supports | |
| Elevator Call Function | Supports | |
| Smart Features | Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m) | |
| Device Interfaces | Alarm Input | 4 (including Exit Button and Door Contact Input) |
| Tamper Switch | 1 | |
| Exit Button | 1 | |
| RS-485 Interface | 1 | |
| USB Interface | / (Not supported) | |
| Wiegand Interface | / (Not supported) | |
| Alarm Output | / (Not supported) | |
| Lock Control | 2 relays, Max. 30 VDC 2 A | |
| Door Contact Input | 1 | |
| General Specifications | Physical Buttons | 1 physical button |
| Installation Type | Surface mounting | |
| Indicators | 3 | |
| Weight | Without package: 273 g (0.61 lb); With package: 431 g (0.95 lb) | |
| Protection Level | IP65 | |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) | |
| Operating Humidity | 10% to 90% (non-condensing) | |
| Dimension (W × H × D) | 164 mm × 69 mm × 24.7 mm (6.46″ × 2.72″ × 0.97″) | |
| Battery | / (Not equipped) | |
| Application Environment | Outdoor | |
| Power Consumption | ＜ 10 W | |
| Supported Languages | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish | |
| Power Supply | Power Input | 12 VDC, 1.2 A; IEEE 802.3 at, standard PoE |
| Power Output | Max. 12 VDC, 1 A | |
| Material | Front Shell & Rear Shell | Plastic |
| Viewing Window Panel | Glass | |
