DS-2DE7A425IW-AEB Overview

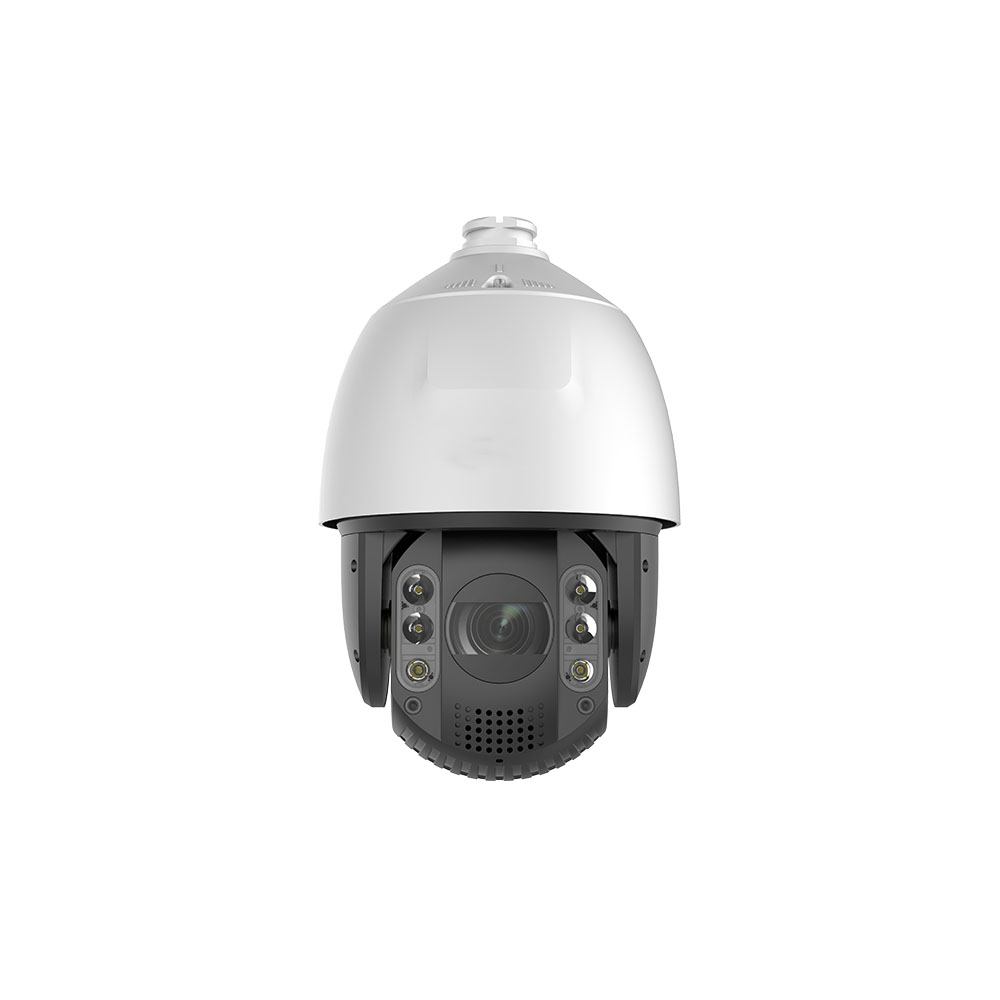

7-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
- 1/2.8″ progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 200 m IR distance
- Focuses on human and vehicle targets classification based on deep learning
- Face capture: Up to 5 faces captured at the same time
Available models:
DS-2DE7A425IW-AEB(USA-STD)(T5)
| DS-2DE7A425IW-AEB Specification | ||
| Camera | Image Sensor | 1/2.8″ progressive scan CMOS |
| Max. Resolution | 2560 × 1440 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.001 Lux @ (F1.5, AGC ON); 0 Lux with IR | |
| Shutter Speed | 1/1 s to 1/30000 s | |
| Day & Night | IR cut filter | |
| Zoom | 25× optical, 16× digital | |
| Slow Shutter | Yes | |
| DORI | Detect (25px/m): 2046.9 m; Observe (63px/m): 812.3 m; Recognize (125px/m): 409.4 m; Identify (250px/m): 204.7 m | |
| Lens | Focal Length | 4.8 mm to 120 mm |
| FOV | Horizontal field of view: 50.8° to 2.6° (wide-tele); Vertical field of view: 29.4° to 1.5° (wide-tele); Diagonal field of view: 57.4° to 3° (wide-tele) | |
| Focus | Auto, semi-auto, manual | |
| Aperture | Max. F1.5 | |
| Zoom Speed | Approx. 4.8 s | |
| Illuminator | Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 200 m | |
| PTZ | Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) | |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s | |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s; preset speed: 200°/s | |
| Proportional Pan | Yes | |
| Presets | 300 | |
| Preset Freezing | Yes | |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol | |
| Pattern Scan | 4 pattern scans | |
| Park Action | Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan | |
| 3D Positioning | Yes | |
| PTZ Status Display | Yes | |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output | |
| Power-off Memory | Yes | |
| Video | Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) | |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 kbps to 16384 kbps | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| H.265 Type | Main Profile | |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | |
| Region of Interest (ROI) | 8 fixed regions for each stream | |
| Audio | Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Bit Rate | 64 Kbps (G.711); 16 Kbps (G.722.1); 16 Kbps (G.726); 32-192 Kbps (MP2L2); 16-64 Kbps (AAC) | |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz | |
| Environment Noise Filtering | Yes | |
| Network | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels | |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP | |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user | |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) | |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) | |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect | |
| Web Browser | IE11, Chrome 57+, Firefox 52+, Safari 11+ | |
| Image | Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule | |
| Wide Dynamic Range (WDR) | 120 dB | |
| SNR | > 52 dB | |
| Defog | Digital defog | |
| Image Stabilization | EIS | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable | |
| Regional Focus | Yes | |
| Regional Exposure | Yes | |
| Interface | Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB | |
| Built-in Speaker | 1 built-in speaker with effective distance reaching max. 30 meters | |
| Audio Interface | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω | |
| Alarm Interface | 2 inputs, 1 output | |
| Reset Function | Yes | |
| Event | Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection | |
| Linkage Actions | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) | |
| Smart Tracking | Manual tracking, auto-tracking | |
| Deep Learning Function | 1. Face Capture: Detects up to 5 faces simultaneously; Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face 2. Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Supports alarm triggering by specified target types (human and vehicle) |
|
| General | Power Supply | 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoE |
| Dimension | Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″) | |
| Weight | Approx. 5 kg (11.03 lb.) | |
| Material | ADC12 | |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F); Humidity 90% or less (non-condensing) | |
| Demist | Yes | |
| Approval | EMC Certification | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) |
| Safety Certification | UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) | |
| Environmental Certification | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| Protection Level | IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection | |
