DS-2DE2A404IW-DE3 Overview

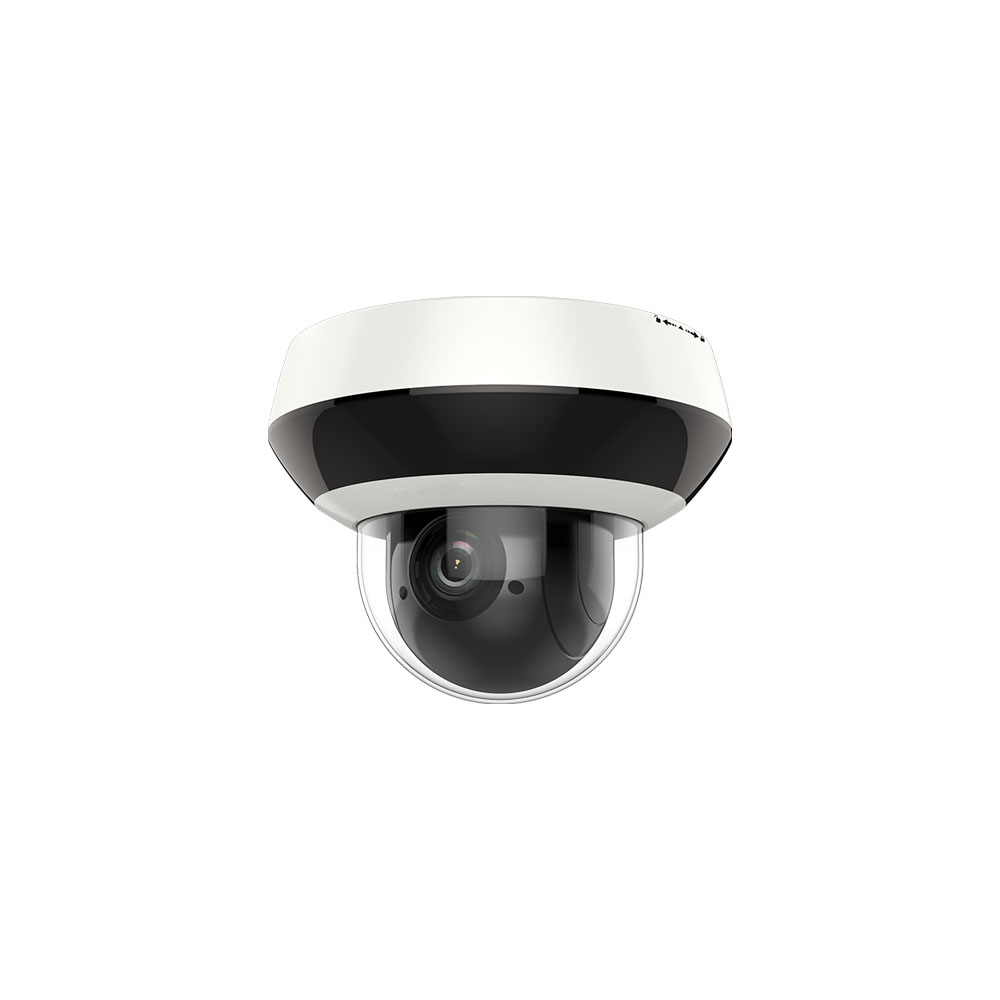

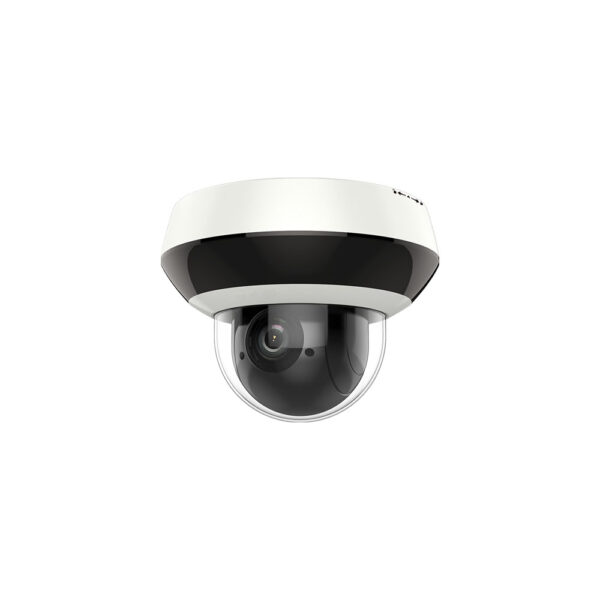

4 MP 4X Outdoor IR Mini Dome PTZ Network Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night
- Water and dust resistant (IP66) and vandal proof (IK10)
Available models:
DS-2DE2A404IW-DE3(C0)(S6)(C)
DS-2DE2A404IW-DE3(C0)(USA-STD)(S6)(C)
| DS-2DE2A404IW-DE3 Specification | ||
| Camera | Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.001 Lux @ (F1.5, AGC ON); 0 Lux with IR | |
| Shutter Speed | 1/1 s to 1/30,000 s | |
| Day & Night | IR cut filter | |
| Zoom | 4x optical, 16x digital | |
| Slow Shutter | Yes | |
| Lens | Focal Length | 2.8 to 12 mm |
| FOV | Horizontal FOV 96.796° to 31.68°; Vertical FOV 51.16° to 17.798°; Diagonal FOV 115.13° to 36.32° | |
| Focus | Auto, semi-auto, manual | |
| Aperture | Max. F1.5 | |
| Zoom Speed | Approx. 2 s | |
| Illuminator | Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 20 m | |
| Smart Supplement Light | Yes | |
| IR Wavelength | 850 nm | |
| PTZ | Movement Range (Pan) | 0° to 355° |
| Movement Range (Tilt) | 0° to 90° | |
| Pan Speed | Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s | |
| Tilt Speed | Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s | |
| Proportional Pan | Yes | |
| Presets | 300 | |
| Preset Freezing | Yes | |
| Park Action | Preset | |
| 3D Positioning | Yes | |
| PTZ Status Display | Yes | |
| Scheduled Task | Preset, dome reboot, dome adjust | |
| Power-off Memory | Yes | |
| Video | Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)；60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)；60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) | |
| Third Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)；60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264；Sub-stream: H.265/H.264/MJPEG；Third stream: H.265/H.264/MJPEG | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| H.265 Type | Main profile | |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | |
| Region of Interest (ROI) | 8 fixed regions for each stream | |
| Audio | Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC) | |
| Audio Sampling Rate | AAC: 16 kHz, 32 kHz, 48 kHz；MP2L2: 16 kHz, 32 kHz, 48 kHz；PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz | |
| Environment Noise Filtering | Yes | |
| Network | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels | |
| API | Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP | |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user | |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) | |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) | |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect | |
| Web Browser | IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ | |
| Image | Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser | |
| Day/Night Switch | Day, Night, Auto, Schedule | |
| Wide Dynamic Range (WDR) | 120 dB | |
| SNR | ＞52dB | |
| Defog | Digital Defog | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable | |
| Regional Focus | Yes | |
| Regional Exposure | Yes | |
| Interface | Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB | |
| Built-in Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters | |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%；1 output (line out), line level, output impedance: 600 Ω | |
| Reset | Yes | |
| Power Output | 12 VDC, max. 60 mA | |
| Event | Basic Event | Motion detection, video tampering alarm, exception |
| Smart Event | Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection | |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset) | |
| General | Power | 12 VDC, Max. 9.2 W; PoE (802.3af) |
| Dimension | Ø 130.7 mm ×101.7 mm (Ø 5.15″ × 4.00″) | |
| Weight | Approx. 530 g (1.17 lb.) | |
| Operating Condition | -20 °C to 60 °C (-4 °F to 140 °F)；Humidity 90% or less (non-condensing) | |
| General Function | Mirror, password protection | |
| Approval – Protection | IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection | |
