Product details
DS-2CE57U1T-VPITF Overview

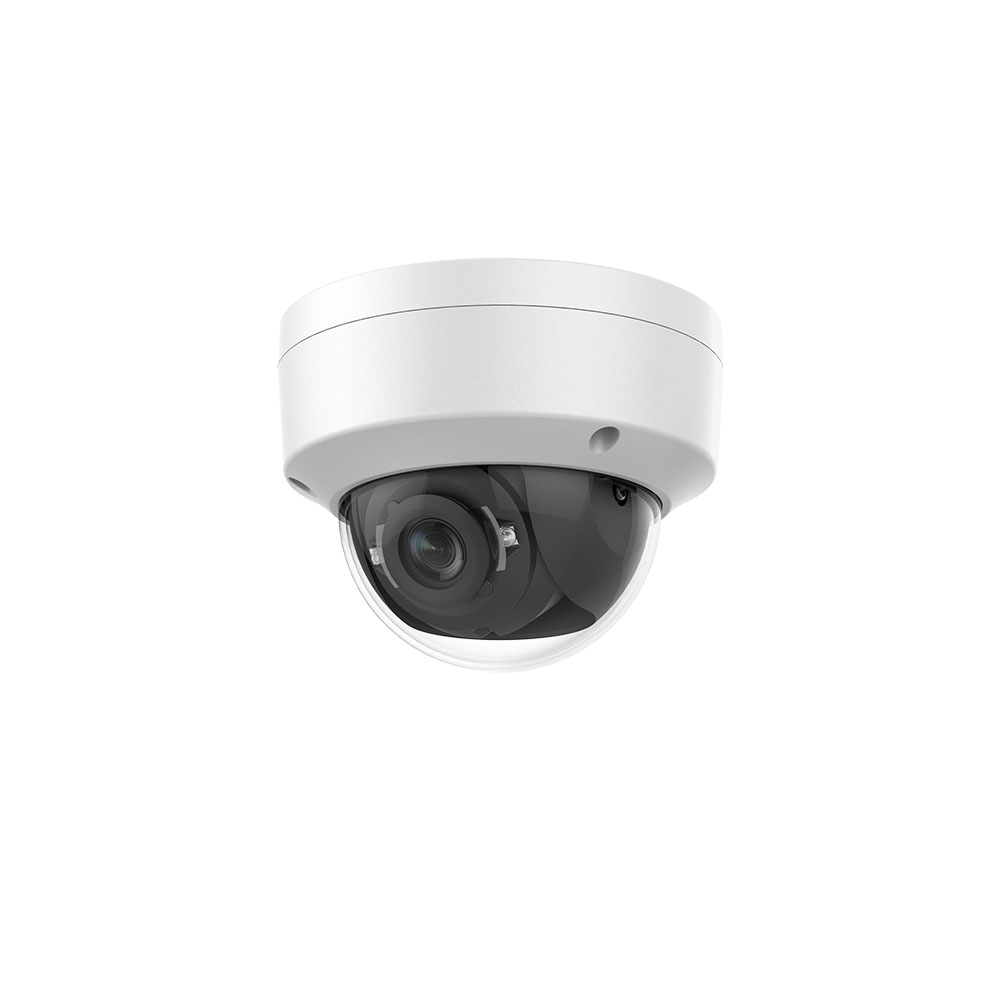

4K Vandal Fixed Dome Camera
- 8 MP dome camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Available models:
DS-2CE57U1T-VPITF(3.6mm)(USA-STD)
| DS-2CE57U1T-VPITF Specification | ||
| Image Sensor | Sensor Type | 8.29 megapixel progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) | |
| Min. Illumination | Color: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR | |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
|
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° | |
| Signal System | PAL/NTSC | |
| Lens | Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm) | |
| Lens Mount | M16 | |
| Illuminator | Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m | |
| Smart Supplement Light | Yes | |
| Image | Image Settings | Brightness; Mirror; Sharpness; AGC |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8M@15fps CVBS: 960H P/N |
|
| Day/Night Mode | Auto/Color/BW (Black and White) | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| Image Enhancement | BLC; HLC | |
| Noise Reduction | 2D DNR | |
| White Balance | Auto/Manual | |
| Interface | Video Output | 1 HD analog output; Switchable TVI/AHD/CVI/CVBS |
| General | Power | 12 VDC ±25%, max. 5.3 W You are recommended to use one power adapter to supply the power for one camera. |
| Material | Metal | |
| Dimension | Φ 110.8 mm × 84.7 mm (Φ 4.4″ × 3.3″) | |
| Weight | Approx. 495 g (1.09 lb.) | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) | |
| Communication | HIKVISION-C | |
| Language | English | |
| Approval | Protection | IP67, IK10 |
