Product details
DS-2CC52D9T-IT3E Overview

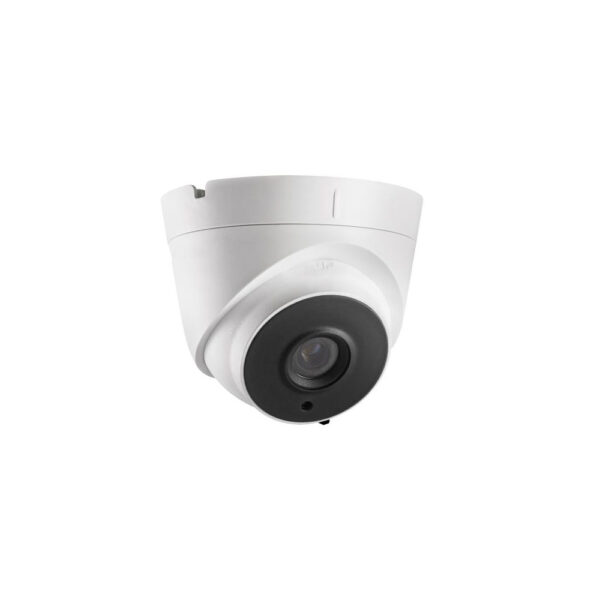

2 MP PoC Fixed Turret Camera
- 2 MP high performance turret camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 40 m IR distance
- Water and dust resistant (IP67)
- Dual outputs (HDTVI and CVBS signals output simultaneously)
- Transmits both HD video and power over the same coaxial cable
Available models:
DS-2CC52D9T-IT3E(2.8mm)
DS-2CC52D9T-IT3E(3.6mm)
| DS-2CC52D9T-IT3E Specification | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | Auto/Color/B/W (White & Black) |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Slow Shutter | Max.: 30 times |
| Application | Indoor/outdoor/indoor1/low light |
| Lens | |
| – Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| – Focal Length & FOV | 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm) |
| – Lens Mount | M12 |
| Image Functions | |
| – Image Settings | Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title, LSC (Lens Shading Correction) |
| – Frame Rate | PAL: 1080p@25fps; NTSC: 1080p@30fps |
| – Day/Night Mode | Auto/Color/BW (White & Black) |
| – Wide Dynamic Range (WDR) | > 120 dB |
| – Image Enhancement | WDR/BLC/HLC/OFF |
| – Privacy Mask | ON/OFF, 8 programmable privacy masks |
| – Noise Reduction | ON/OFF |
| – White Balance | ATW/AWC-SET/MANUAL |
| – AGC | Support |
| Interface | |
| – Video Output | TVI&CVBS |
| – Event (Motion Detection) | 4 programmable motion areas |
| General Specifications | |
| – Material | Metal & Plastic |
| – Dimension | Φ 110 mm × 93.2 mm (4.33″ × 3.67″) |
| – Weight | Approx. 200 g (0.44 lb.) |
| – Operating Condition | -40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation) |
| – Communication | Up the coax, Protocol: HIKVISION-C |
| – Power Supply | 12 VDC ±30%/PoC.af |
| – Consumption | Max. 4 W |
| – IR Range | Up to 40 m |
| – Approval (Protection) | IP67 |
